HEFAISTUS FIXED PLANTS

Sanitary - Hazardous - Chemical - Contaminants - Urban - Various

The HEFAISTUS incinerators are built to operate with controlled combustion and are capable of smoothly handling thermo-destruction, along with high operational simplicity and quality performance, as well as significant limitation of both solid and gaseous pollutant emissions.
Inside the incineration chamber, the temperature reaches 1,300 degrees, and the waste comes into contact with the flame and the oxygen cutting zone (blue zone).

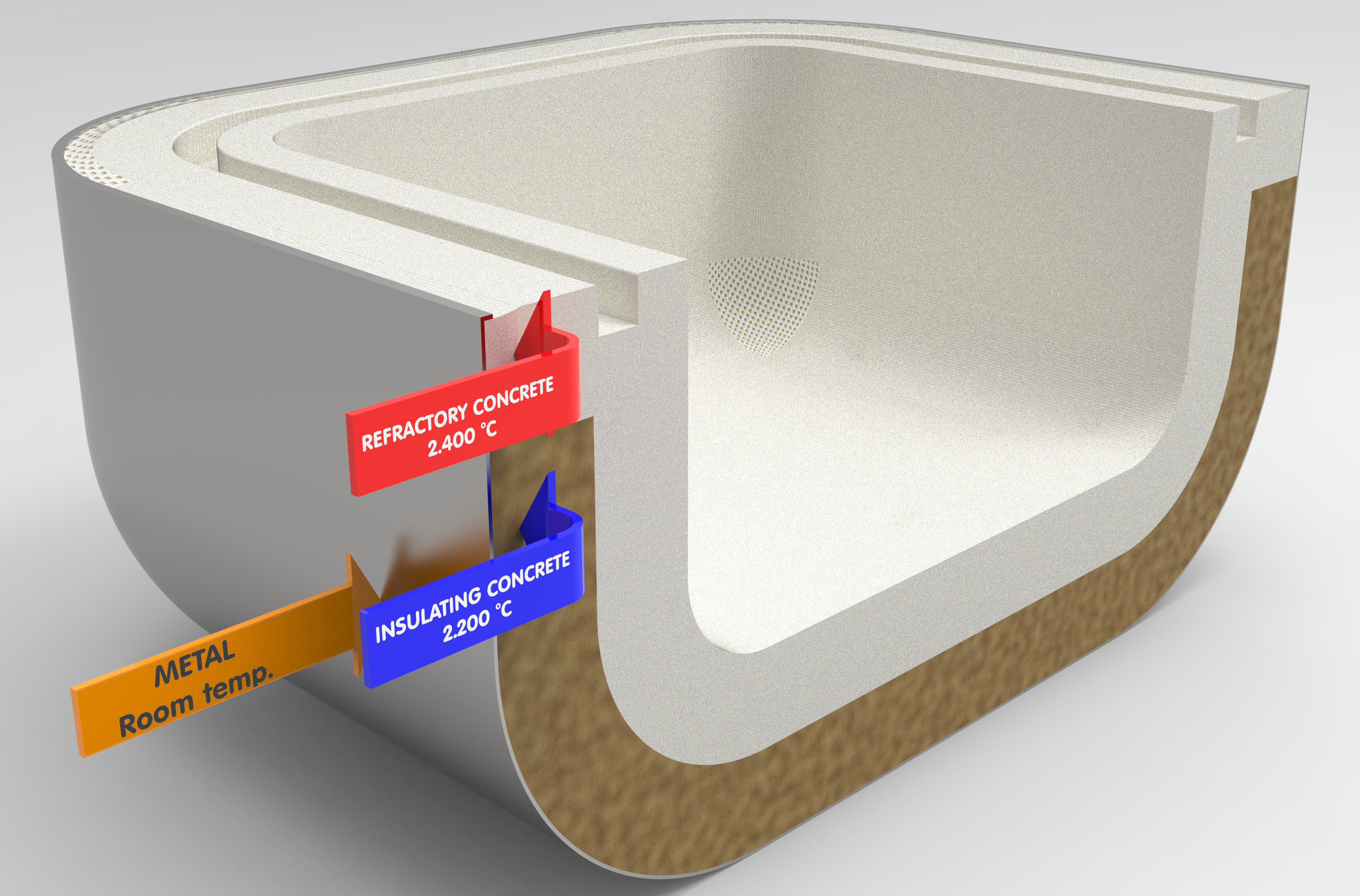

Internal lining: executed with a first layer of special monolithic lightweight insulating concrete 120 mm thick and 120 mm of high-quality refractory concrete resistant to high temperatures with chemical analysis (%):
Al2O3: 71
SiO2: 24.5
Fe2O3: 1.1
Classification: HA 75
Refractoriness (S.C.): 38
Refractoriness under load °C (t0.5): 2400
Raw material: Mullite / High Al. Raw Mat.
Density (g/cm3): 2.60
Apparent porosity (% b.v.): 18
C.C.S. (N/mm2): 70
